mSATA SSD

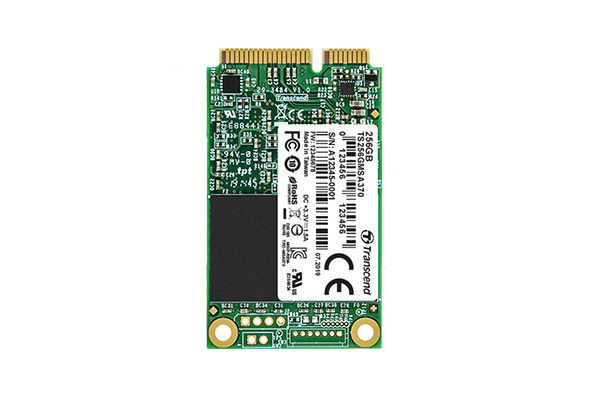

mSATA SSD 370

Supporting the next-generation Serial ATA interface and built around a powerful controller, Transcend's SATA III 6Gb/s mSATA SSD 370 delivers blazing fast performance and long-term reliability. The compact mSATA form factor makes it perfect for use in space-restricted portable devices such as Ultrabooks, tablet PCs, and slim servers.

Share

Features

  • MLC flash-based performance and reliability
  • Supports Intel® Smart Response Technology (ISRT)
  • DDR3 DRAM cache
  • Maximizes notebook battery life when not in use thanks to full support of SATA Device Sleep Mode (DevSleep)
  • S.M.A.R.T., TRIM and NCQ support to maintain a healthy, efficient SSD
  • Built-in wear-leveling algorithm ensures highly reliable of data transfer

Intel Smart Response Technology

Transcend's SATA III 6Gb/s mSATA SSD supports Intel® Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for maximum storage capacity while delivering an SSD-like overall system performance experience.

ISRT works by monitoring which programs and files you access most frequently and stores them on the SSD. As a result, application launch speed and overall system responsiveness are significantly improved, while the large capacity of the hard drive is free to store all your other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.


Specifications

Appearance

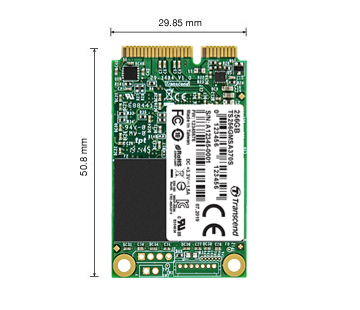

Dimensions (Max.)50.8 mm x 29.85 mm x 4.85 mm (2.00" x 1.18" x 0.19")
Weight (Max.)8 g (0.28 oz)

Storage

Capacity
  • 16 GB
  • 32 GB
  • 64 GB
  • 128 GB
  • 256 GB
Flash Type
  • MLC NAND flash

Operating Environment

Operating Temperature0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 3.3V±5%

Performance

Read Speed (Max.)550 MB/s
Write Speed (Max.)320 MB/s
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.

Warranty

Certificate
  • CE
  • FCC
  • BSMI
Warranty
  • Three-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

System Requirement

Operating System
  • Microsoft Windows 7
  • Microsoft Windows 8
  • Microsoft Windows 10
  • Linux Kernel 2.6.31 or later

Order Information

16GB
  • TS16GMSA370
32GB
  • TS32GMSA370
64GB
  • TS64GMSA370
128GB
  • TS128GMSA370
256GB
  • TS256GMSA370
