DrivePro Body Toolbox

User’s Manual


1. Supported Models

Body Cameras

  • DrivePro Body 70
  • DrivePro Body 60
  • DrivePro Body 40
  • DrivePro Body 30
  • DrivePro Body 52
  • DrivePro Body 20
  • DrivePro Body 10C
  • DrivePro Body 10B
  • DrivePro Body 10A

2. System Requirements

Software Download

  • Microsoft Windows 10 or later (64-bit)

  • macOS 10.14 or later (Mac with Intel chip)

For Windows OS

  • Microsoft .Net framework 4.6.1 or later installation required.

3. Hardware Requirements

  • Desktop or notebook computer connected with the exclusive cable provided

  • Support Mac with Intel Chip Only

4. Status

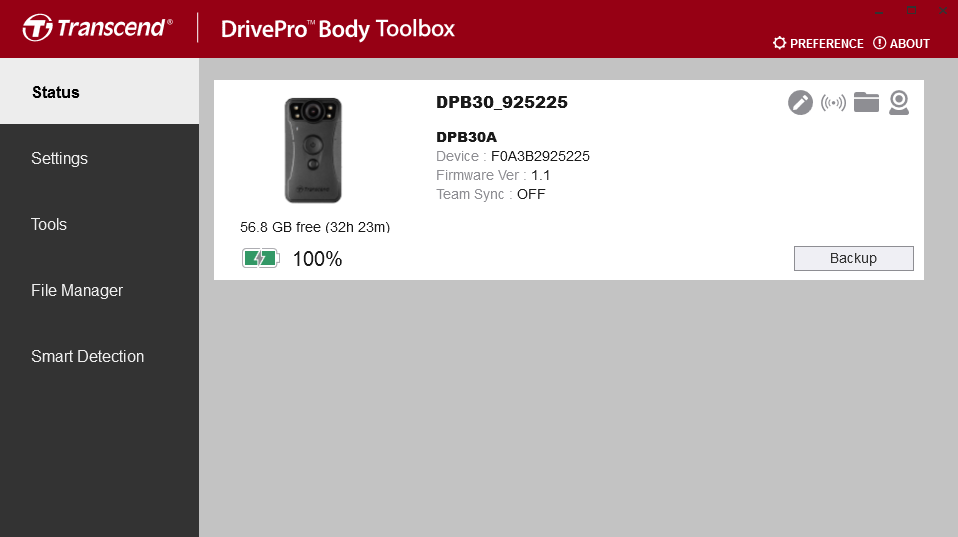

On the Status page, the basic information of the DrivePro™ Body is displayed, including user label, model name, device serial number, firmware version, team sync group, remaining storage and battery level.

  • To change the user label and team sync group, click on .

  • To find the device, click on .

  • To play videos and browse photos, click on .

  • To enable webcam mode, click on .

  • To start backing up, click on .

5. Settings

On the Settings page, you can adjust the device settings, video settings, and video stamp.

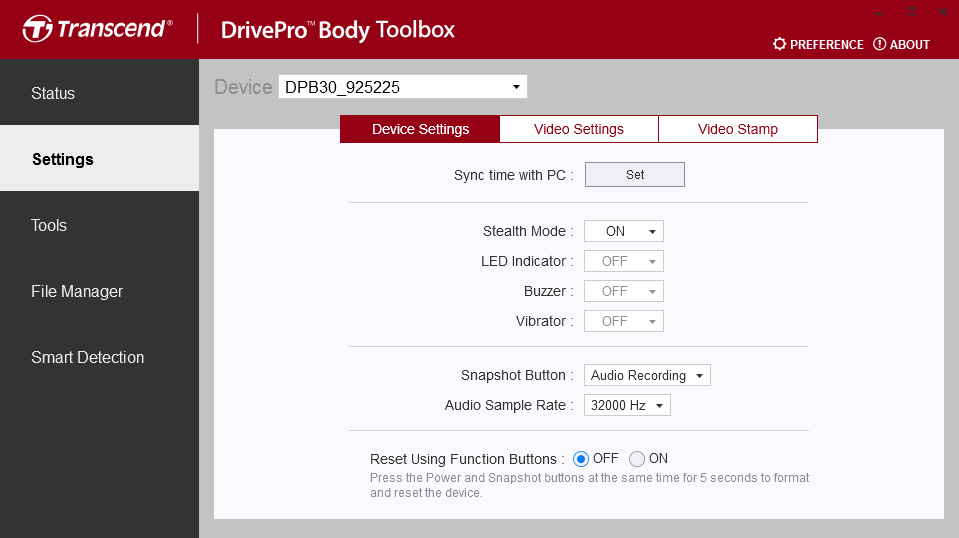

Device Settings

Function Description / Options
Sync time with PC Click the Set button to sync the time of the device with the PC.
LED Indicator Activate/Deactivate LEDs during recording.
ON / OFF
Buzzer Enable/Disable Buzzer during recording.
ON / OFF
Snapshot Button
Adjust the long-press Snapshot button setting to enable the infrared LEDs or the audio recording function.
Note: On the Settings page, beneath the "Snapshot Button," you will see either "Infrared LED" or "Audio Sample Rate," depending on the selected function, which can be "Infrared LED" or "Audio Recording."
Infrared LED / Audio Recording
Infrared LED Select to activate the Infrared LEDs manually or automatically.
Manual / Auto (default)
Audio Sample Rate Set audio sample rate. The higher the frequency, the better the sound quality.
48000 Hz / 44100 Hz / 32000 Hz / 24000 Hz / 22050 Hz
Reset Using Function Buttons
To format and reset the device, press the Power and Snapshot buttons simultaneously for over 5 seconds while the power is on. Afterward, the camera will turn off.
ON / OFF (default)

Function Description / Options
Sync time with PC Click the “Set” button to sync the time of the device with the PC.
Stealth Mode Turn on/off Stealth mode.
When the Stealth mode is on, the light indicators and buzzer are disabled.
ON / OFF
LED Indicator Turn on/off LEDs when recording.
ON / OFF
Buzzer Turn on/off Buzzer when recording.
ON / OFF
Vibrator Turn on/off Vibrator when recording.
ON / OFF
Snapshot Button
Adjust the long-press snapshot button setting to enable the infrared LEDs or the audio recording function.
Infrared LED / Audio Recording
Infrared LED Select to activate the Infrared LEDs manually or automatically.
Manual / Auto (default)
Reset
Using Function Buttons
When the power is on, press the power button and snapshot button simultaneously for 5+ seconds to format and reset the device. After that, the camera will turn off. (Default: OFF).

Function Description / Options
Time Zone Select your time zone.
Sync time with PC Click the “Set” button to sync the time of the device with the PC.
GPS Switch GPS on/off.
OFF / ON
Bluetooth Turn Bluetooth on/off.
OFF / ON
Stealth Mode Click the “Set” button to turn on/off Stealth mode.
When the Stealth mode is on, the LED indicators, buzzer, and vibrator are disabled.
OFF / ON
Snapshot Button
Set the long press of the Snapshot button to either enable the infrared LEDs or activate the audio recording function.
Infrared LED / Audio Recording
Infrared LED Select to activate the Infrared LEDs manually or automatically.
Manual / Auto (default)
Reset Using Function Buttons To format and reset the device, press and hold the Power and Snapshot buttons simultaneously for 5 seconds while the power is on. Afterward, the camera will turn off.
(Default: OFF)

Function Description / Options
Sync time with PC Click the “Set” button to sync the time of the device with the PC.
Stealth Mode Turn on/off Stealth mode. When the Stealth mode is on, the light indicators and buzzer are disabled.
OFF / ON
LED Indicator Turn on/off LEDs when recording.
OFF / ON
Buzzer Turn on/off Buzzer when recording.
OFF / ON
Vibrator Turn on/off Vibrator when recording.
OFF / ON
Audio Sample Rate Set audio sample rate.
The higher the frequency, the better the sound quality.
48000 Hz / 44100 Hz / 32000 Hz / 24000 Hz / 22050 Hz
Reset Using Function Buttons When the power is on, press the Power and Snapshot buttons simultaneously for 5 seconds to format and reset the device. After that, the camera will turn off. (Default: OFF)

Function Description / Options
Sync time with PC Click the “Set” button to sync the time of the device with the PC.
Stealth Mode Turn on/off Stealth mode.
When the Stealth mode is on, the light indicators and buzzer are disabled.
ON / OFF
LED Indicator Turn on/off LEDs when recording.
ON / OFF
Buzzer Turn on/off Buzzer when recording.
ON / OFF
Vibrator Turn on/off Vibrator when recording.
ON / OFF
Audio Sample Rate Set the audio sampling frequency.
The higher the frequency, the better the sound quality.
48000 Hz / 44100 Hz / 32000 Hz / 24000 Hz / 22050 Hz
Reset
Using Function Buttons
When the power is on, press the Power and Snapshot buttons simultaneously for 5 seconds to format and reset the device. After that, the camera will turn off. (Default: OFF).

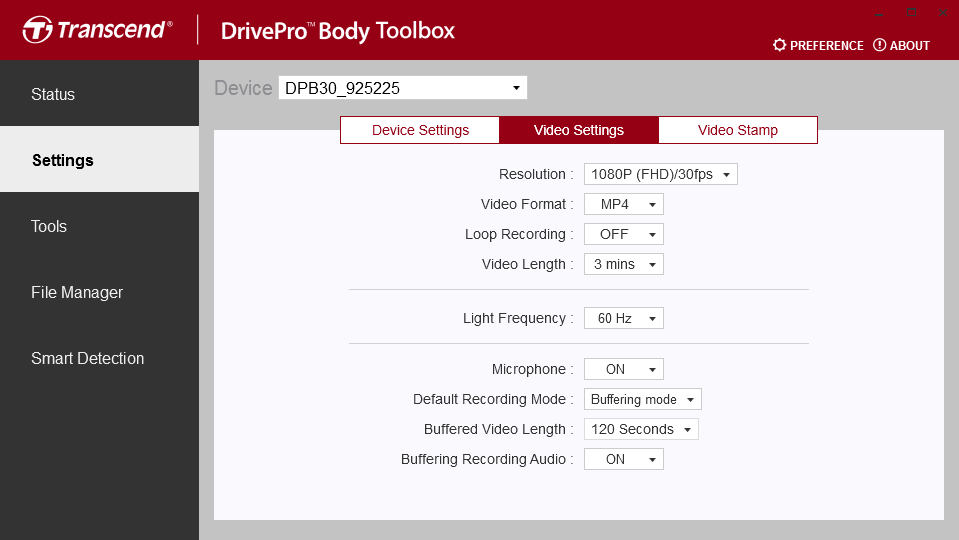

Video Settings

Function Description / Options
Resolution
Set the quality for video recording.
Note: Available options are displayed depending on your model.
1080P/60FPS / 1080P/30FPS / 720P/60FPS / 720P/30FPS
Loop Recording Overwrite the old video files with new ones.
ON / OFF (default)
Video Length Set the recording length of each recorded video.
3 mins / 5 mins / 10 mins
Light Frequency Select the appropriate frequency to avoid flashing A/C light.
50 Hz / 60 Hz
Microphone Turn on/off the microphone during video recording.
ON / OFF

Function Description / Options
Resolution Set the quality for video recording.
1440P/30FPS / 1080P/60FPS / 1080P/30FPS / 720P/30FPS / 480P/30FPS
Video Format Set the recording file format.
MOV / MP4
Loop Recording Overwrite the old video files with new ones.
ON / OFF (default)
Video Length Set the recording length of each recorded video.
3 mins / 5 mins / 10 mins
Light Frequency Select the appropriate frequency to avoid flashing A/C light.
50 Hz / 60 Hz
Microphone Turn on/off the microphone during video recording.
ON / OFF
Default Recording Mode Select the default recording mode.
Buffering mode / Recording mode
Buffered Video Length
Set the buffered video length to record footage that happens prior to activating the Recording mode.
Note: The resolution settings determine the maximum length of videos recorded in Buffering mode.
30 seconds / 60 seconds / 90 seconds / 120 seconds
Buffering Recording Audio Turn on/off the microphone in Buffering mode.
ON / OFF

Function Description / Options
Resolution Set the resolution/quality for video recording.
1440P/60FPS / 1440P/30FPS / 1080P/30FPS / 720P/30FPS
Image Stabilization
Enable or disable image stabilization.
Note: When image stabilization is enabled, the available resolution options are 1440P/30FPS and 1080P/30FPS.
OFF / ON
Video Format Set the recording file format.
MOV / MP4
Loop Recording Overwrite the old video files with new ones.
OFF (default) / ON
Video Length Set the recording length of each recorded video.
3 mins / 5 mins / 10 mins
Light Frequency Select the appropriate frequency to avoid flashing A/C light.
50 Hz / 60 Hz
Microphone Turn on/off the microphone during video recording.
OFF / ON
Default Recording Mode Select the default recording mode.
Buffering mode / Recording mode
Buffered Video Length
Set the buffered video length to record footage that happens prior to activating the Recording mode.
Note:
· The resolution settings determine the maximum length of videos recorded in Buffering mode.
· When the resolution is set to 1440P/60FPS or 1440P/30FPS, the available options for Buffered Video Length are 30 seconds and 60 seconds.
30 seconds / 60 seconds / 90 seconds / 120 seconds
Buffering Recording Audio Turn on/off the microphone in Buffering mode.
OFF / ON

Function Description / Options
Resolution Set the resolution/quality for video recording.
1080P/30FPS / 720P/30FPS / 480P/30FPS
Loop Recording Overwrite the old video files with new ones.
OFF (default) / ON
Video Length Set the recording length of each recorded video.
3 mins / 5 mins / 10 mins
Light Frequency Select the appropriate frequency to avoid flashing A/C light.
50 Hz / 60 Hz
Microphone Turn on/off the microphone during video recording.
OFF / ON
Default Recording Mode Select the default recording mode.
Buffering mode (default) / Recording mode
Buffered Video Length
Set the buffered video length to record footage that happens prior to activating the Recording mode.
Note: The resolution settings determine the maximum length of videos recorded in Buffering mode.
30 seconds / 60 seconds / 90 seconds / 120 seconds (default)
Buffering Recording Audio Turn on/off the microphone in Buffering mode.
OFF / ON

Function Description / Options
Resolution Set the quality for video recording.
1440P/30FPS / 1080P/30FPS / 720P/30FPS / 480P/30FPS
Video Format Set the recording file format.
MOV / MP4
Loop Recording Overwrite the old video files with new ones.
ON / OFF
Video Length Set the recording length of each recorded video.
3 mins / 5 mins / 10 mins
Light Frequency Select the appropriate frequency to avoid flashing A/C light.
50 Hz / 60 Hz
Microphone Turn on/off the microphone during video recording.
ON / OFF
Default Recording Mode Select the default recording mode.
Buffering mode / Recording mode
Buffered Video Length Set the buffered video length to record footage that happens prior to activating the Recording mode.
30 seconds / 60 seconds / 90 seconds / 120 seconds
Buffering Recording Audio Turn on/off the microphone in Buffering mode.
ON / OFF

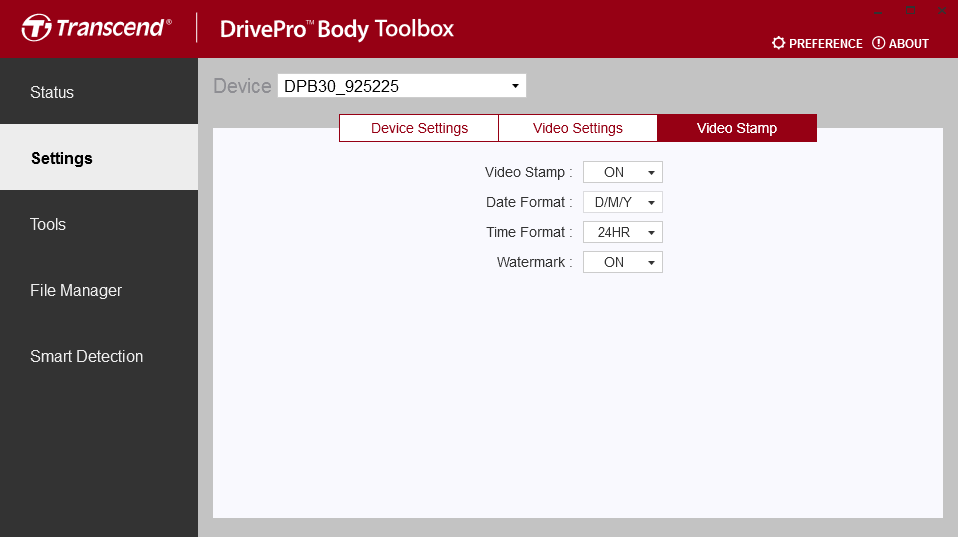

Video Stamp

Function Description / Options
Video Stamp Display the video recording time and the video label.
OFF / ON
Date Format Set the date format.
Y/M/D / M/D/Y / D/M/Y
Time Format Select the 24-hour clock or the 12-hour clock.
24HR / AM/PM
Watermark Display the Transcend logo watermark on photos or videos.
OFF / ON


6. Tools

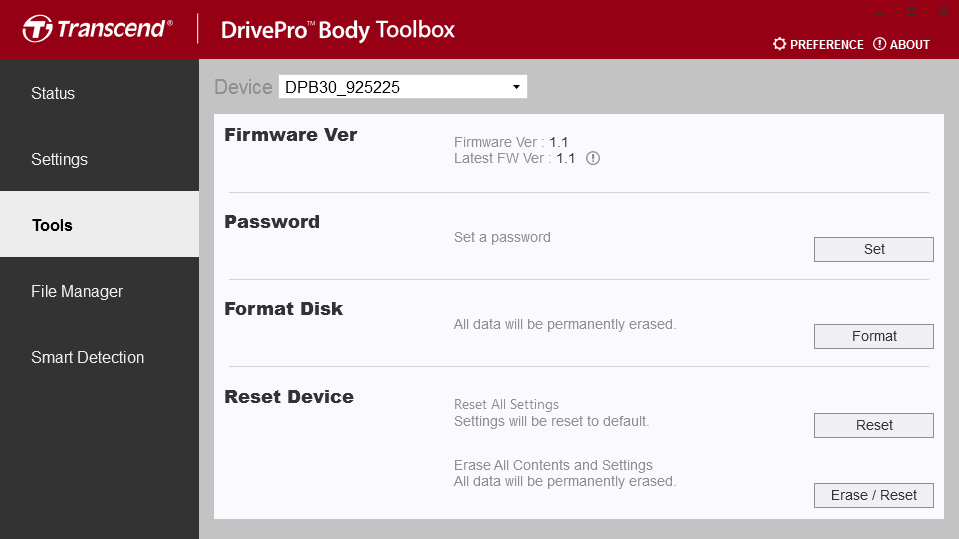

On the Tools page, you can upgrade firmware to the latest version, enable/change/disable password, format disk or reset DrivePro™ Body to its default status.

Note

  • Formatting the disk and resetting the device will permanently remove all data.
  • Firmware Upgrade: Upgrade your firmware to the latest version available.

  • Password: Set a password for your device. If password is set, you will need to enter the password to proceed the following operation.

  • Format Disk: Format your device.

  • Reset Device: Reset all settings to default or erase all contents and settings.

7. File Manager

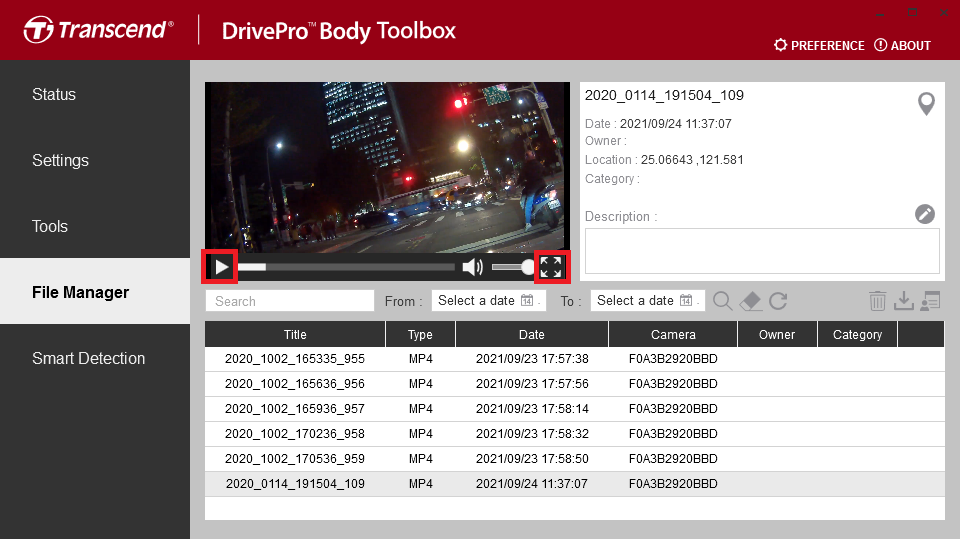

On the File Manager page, you can search and manage your videos and photos, or edit photos.

  • Click on to play the video on screen. Click on to enlarge and play the video to full screen. With a GPS receiver, the paths can be displayed along with the recorded video.

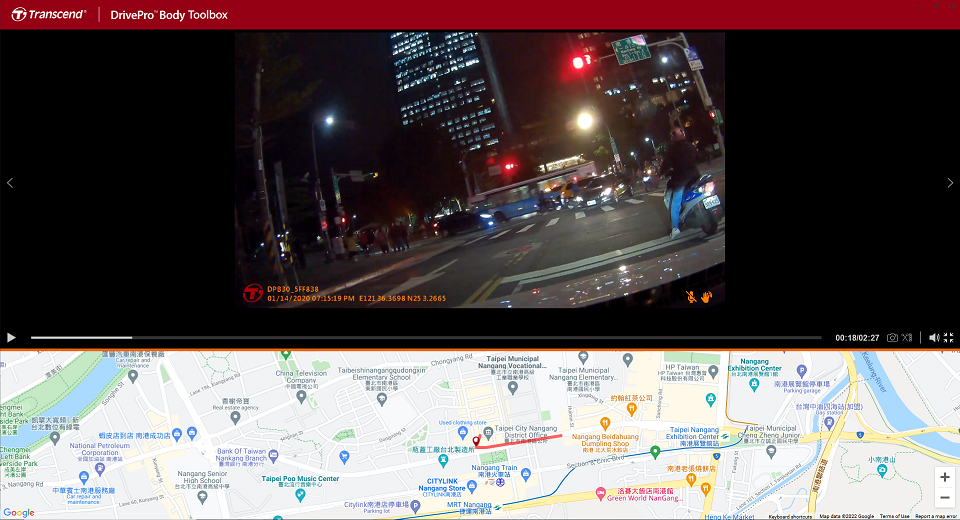

  • Click on to switch to the map screen.

  • Click on to edit the owner and category of the file.

  • Click on to delete the video or photo.

  • Click on to download the video or photo.

  • Click on to add, delete, or edit the Owner and Category of your files.

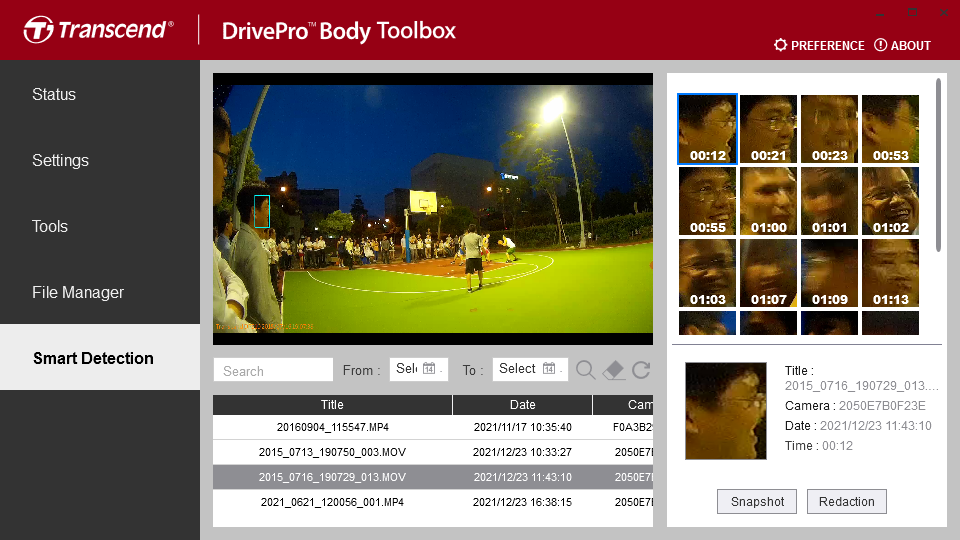

8. Smart Detection

  1. Go to "Smart Detection" in the main menu.

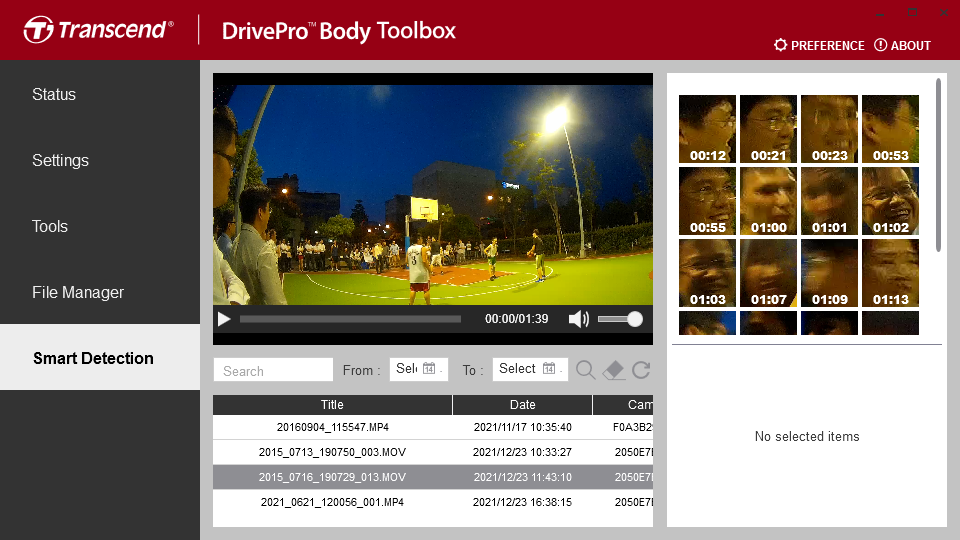

  2. Select a file in the files list, the analyzing progress will start automatically to identify the faces in a video and extract footage to the sidebar.

  3. Select a footage to take a snapshot or switch to redaction mode.

  4. Click "Snapshot" to take a snapshot, the snapshot will save to the same directory as selected video.

  5. Click "Redaction" to switch to redaction mode.

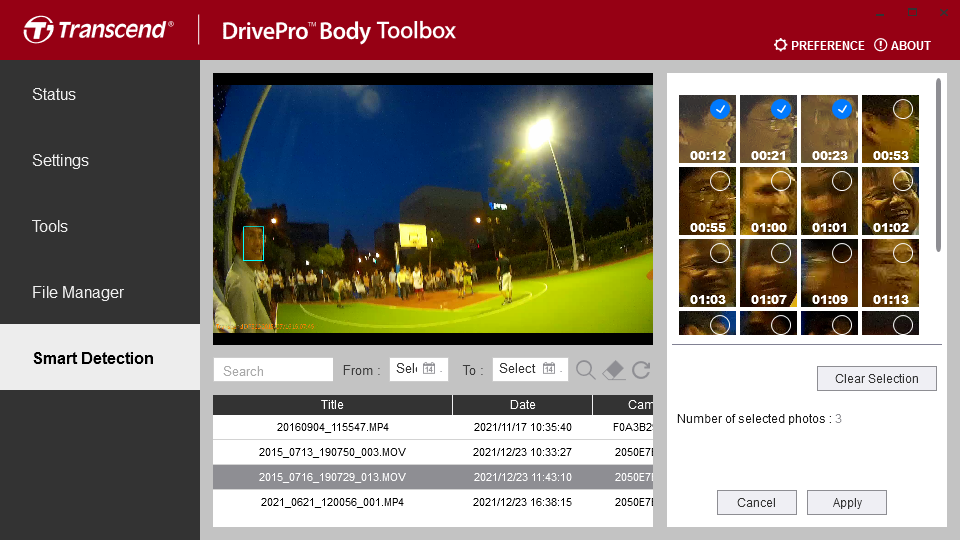

  6. In redaction mode, you can select at most 10 footages to blur.

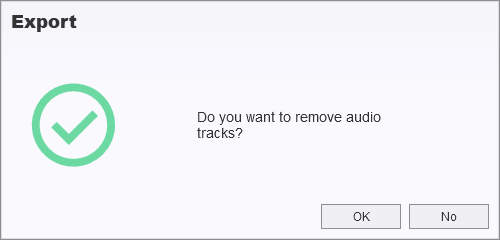

  7. Click "Apply" to start redaction process after selecting the footages. You can choose to remove audio tracks or not.

  8. Wait for the process to finish. The redacted video will save to the same directory as selected video.

9. Webcam

Note

  • Currently, only DrivePro Body 10C/30/40/60/70 supports this feature.
  1. Click on to enter webcam mode.

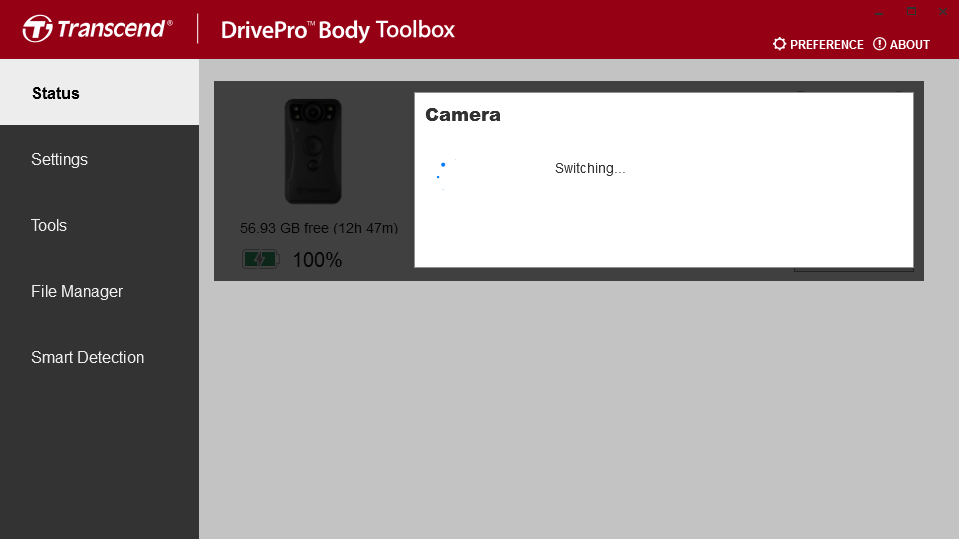

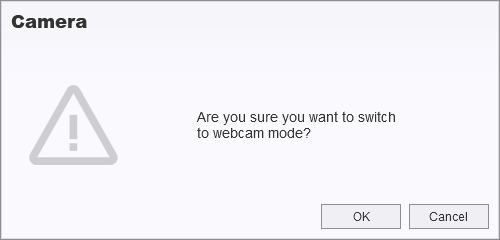

  2. Switch to webcam mode.

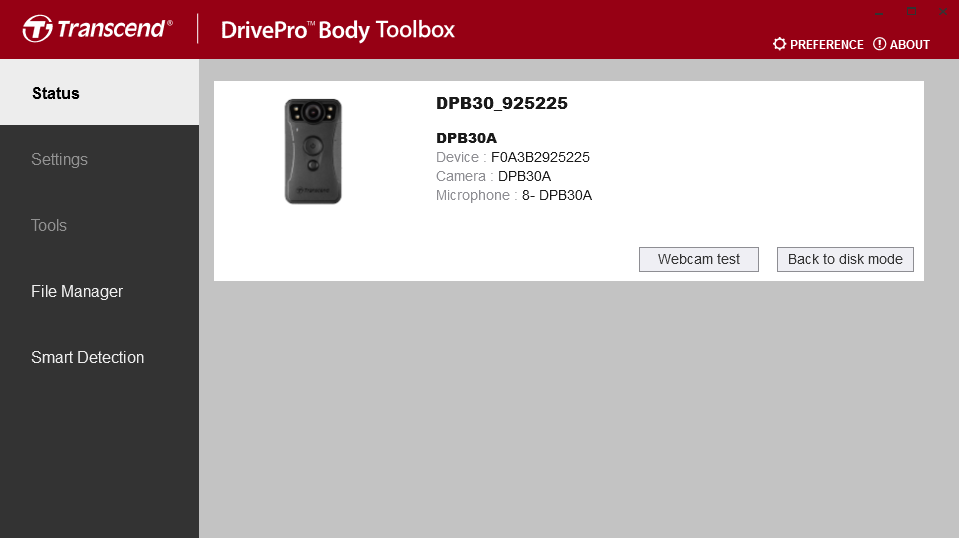

  3. Click on to enter the webcam test page.

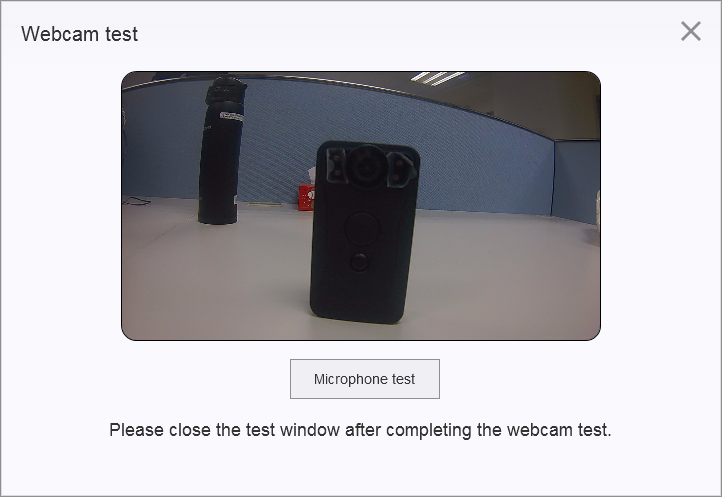

  4. On the webcam test page, confirm whether the live image is normal.

  5. Click on to enter the microphone test page.

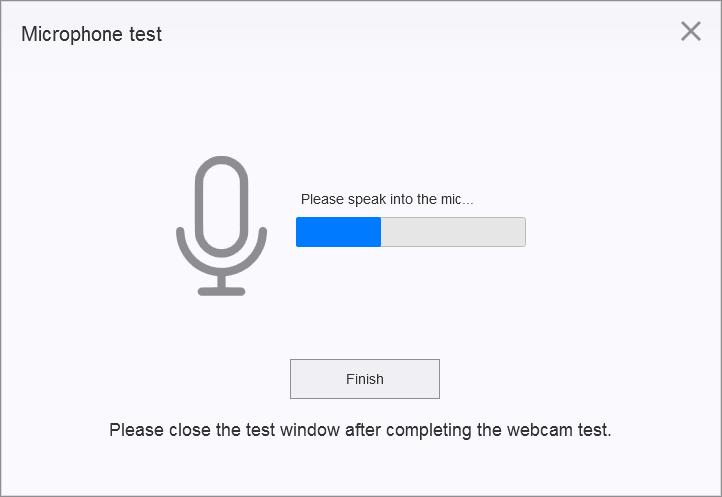

  6. On the microphone test page, confirm whether the microphone is receiving sound normally.

  7. After completing the test, be sure to click on or to close the test page.

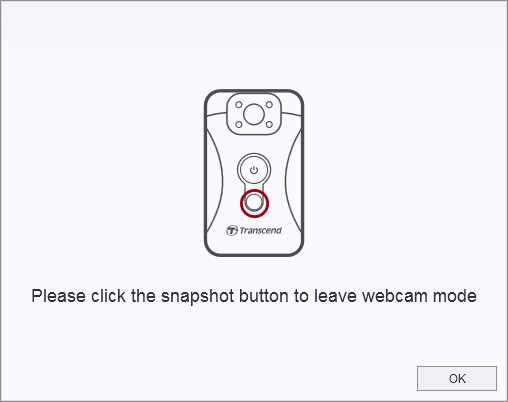

  8. To exit the webcam mode, click on , the instruction page for exiting the webcam mode will appear.

10. Team Sync

Note

  • Currently, only DrivePro Body 30/40/60/70 supports this feature.

“Team Sync” is a function based on the Bluetooth technology, as soon as one body camera enters the recording mode from the buffering mode; all other cameras in the same group automatically enter the recording mode as well.

Please refer to the following procedure if you would like to enable the “Team sync” function.

  1. Please connect your DrivePro Body to the computer and run DrivePro Body Toolbox.

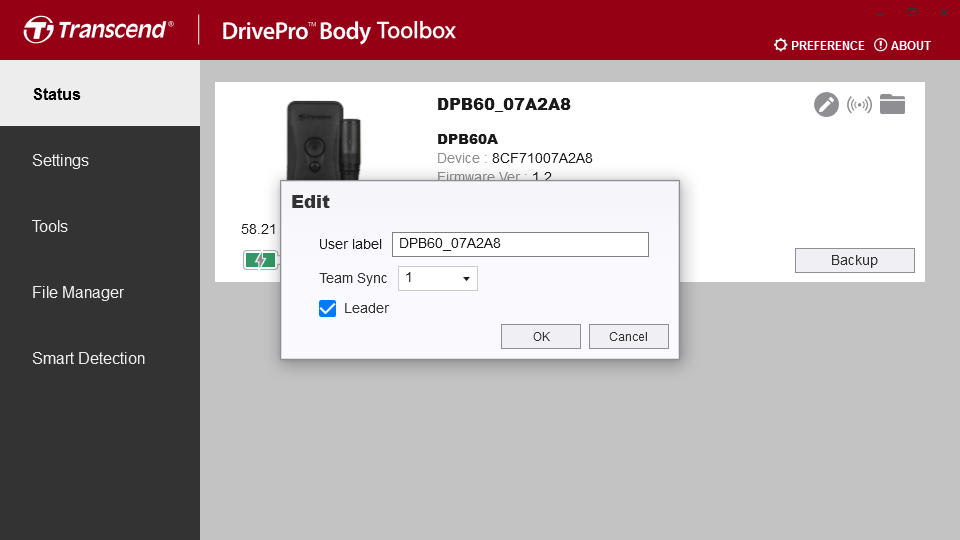

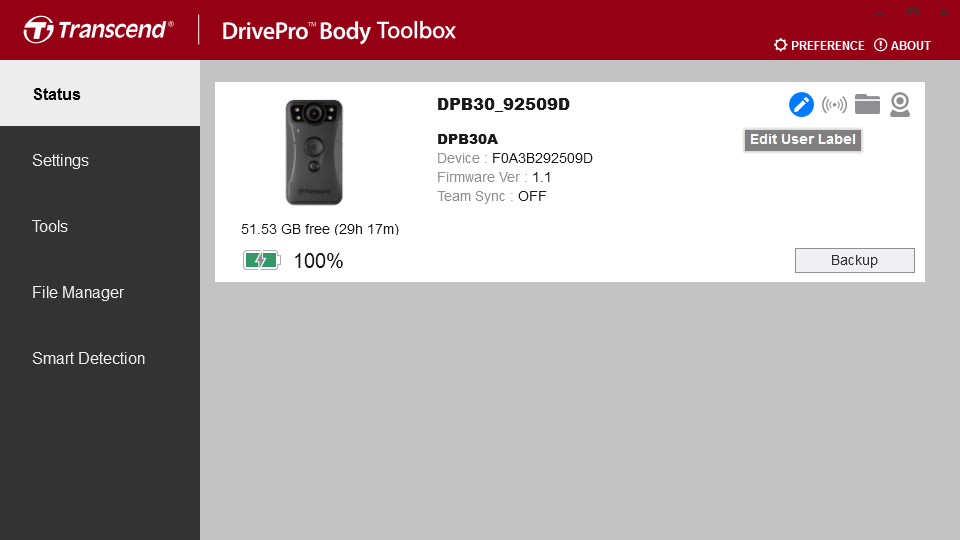

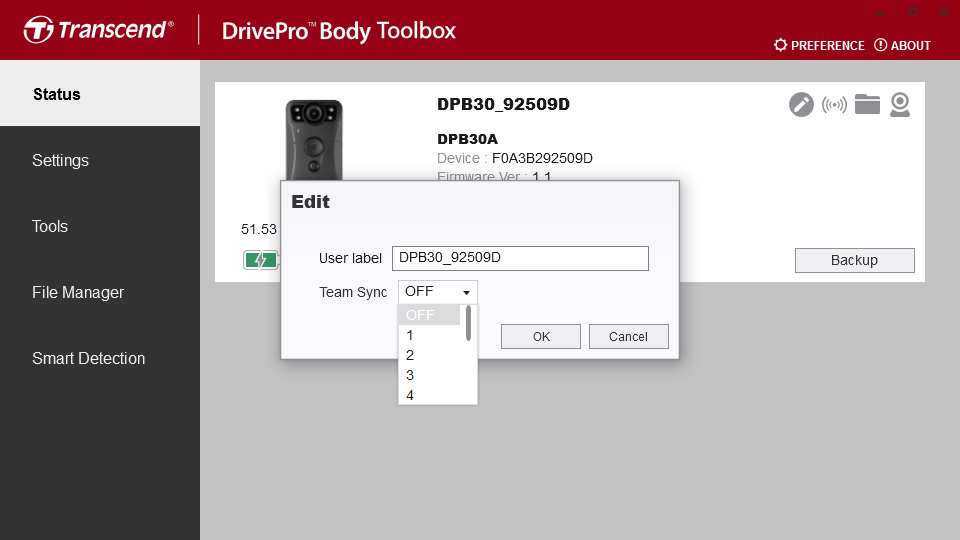

  2. Please click on “Edit User Label”, and set “Team sync” from “Off” to “ your preferred team number” based on your needs, you may select from 1 ~ 10 under Team Sync.

  3. After the settings are completed, you may remove your DrivePro Body from the computer。

11. Quick wakeup

Note

  • Currently, only DrivePro Body 40/60 supports this function.

“Quick wakeup” is a more advanced function than “Team sync”. Once Leader body camera enters the recording mode, all other cameras in the same group will automatically enter the recording mode from off status as well.

Please refer to the following steps if you want to enable the “Quick wakeup” function.

  1. Please connect your DrivePro Body to the computer and run the DrivePro Body Toolbox.

  2. Please click on “Edit User Label”, select your team number, and check off “Leader” to enable the “Quick wakeup” function.

  3. Once the settings are completed, you may remove DrivePro Body from the computer.

12. Preference

Click on on top of the page to adjust the settings of the DrivePro™ Body Toolbox. Check the available options below according to your preference.

Option Instruction
Auto run at Windows startup DrivePro Body Toolbox starts automatically when the computer is turned on.
Minimize on startup DrivePro Body Toolbox automatically hides in the hidden toolbar when opened.
Language DrivePro Body Toolbox display language.
Auto back up Automatically backup DrivePro Body device files just connected to the computer.
Format disk after backup is completed After the backup is completed, the DrivePro Body storage space is automatically formatted.
Secure Data Put the backed up files in a non-shared folder for storage.
Backup Folder Naming Methods The name of the folder where the backup files are stored, you can choose "Device ID" or "User Name" to name it.
Path of backup Storage location for backup files.
Auto sync time with PC Automatically synchronize the time of the DrivePro Body device just connected to the computer.

13. More Help

If you cannot find the answer to your problem in this manual and are having difficulty with DrivePro Body software or Transcend’s Body Cameras, please visit our Tech Support website at http://www.transcend-info.com/Support/contact_form
