DrivePro Body Docking Toolbox
User Manual (Windows)
1. System Requirements
Supported Systems
- Microsoft Windows 10 or later (64-bit)
Hardware Requirements
- Desktop or notebook computer
Supported Models
Docking Stations
- TS-DPD6N
- TS-DPD6C
2. Getting Started
Download the Docking Toolbox software from the official website:

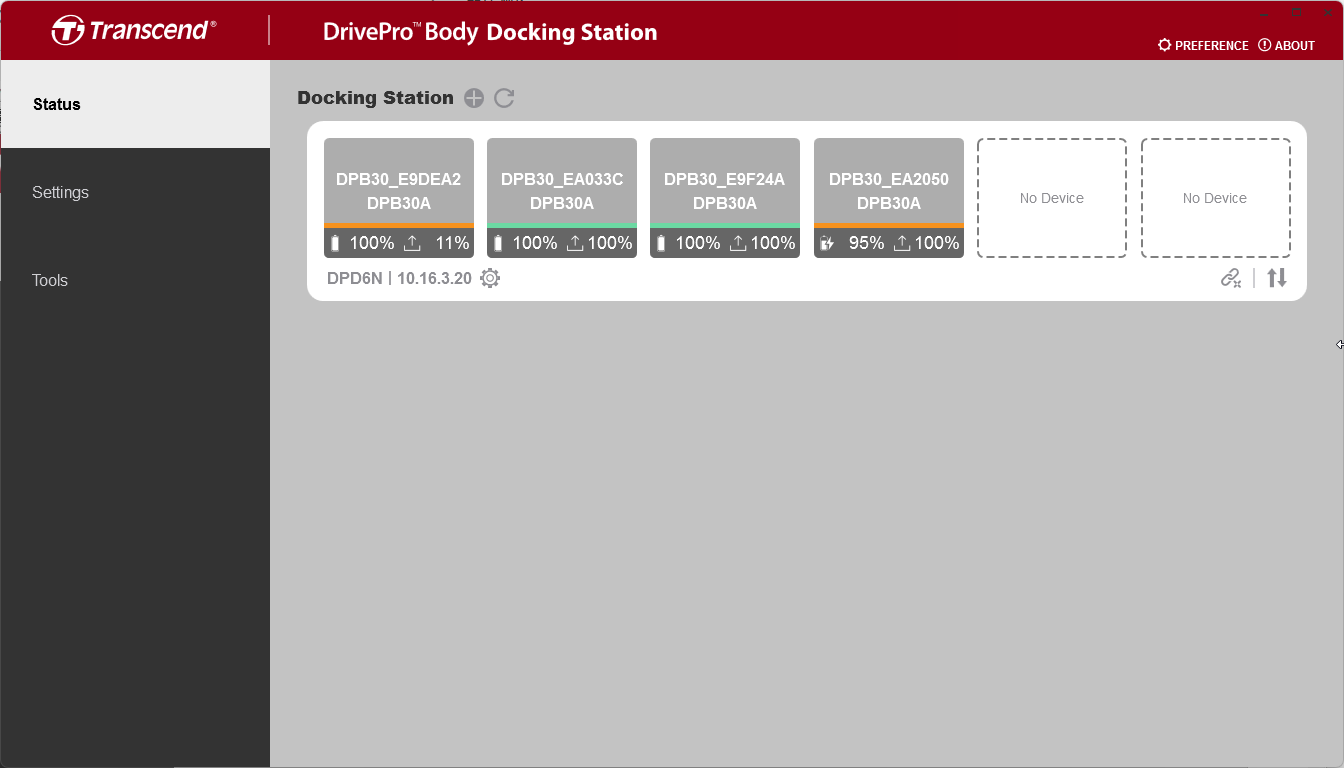

3. Status
The Status page displays connection information for the docking station, as well as the charging and backup status of the DrivePro Body.
3-1. Adding a Docking Station
-
To add a docking station, click
. -

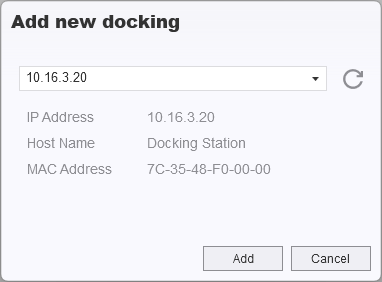

Once the device is detected, select the docking station you want to add and click the Add button.
3-2. Docking Station Information
Click
to view detailed information about the docking station.

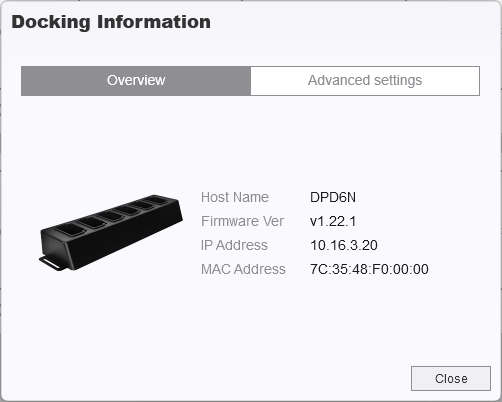

Overview
- On the Overview page, you can view the docking station's host name, firmware version, IP address, and MAC address.
Advanced Settings
- On the Advanced Settings page, you can change the docking station's host name, update firmware, and adjust the time.

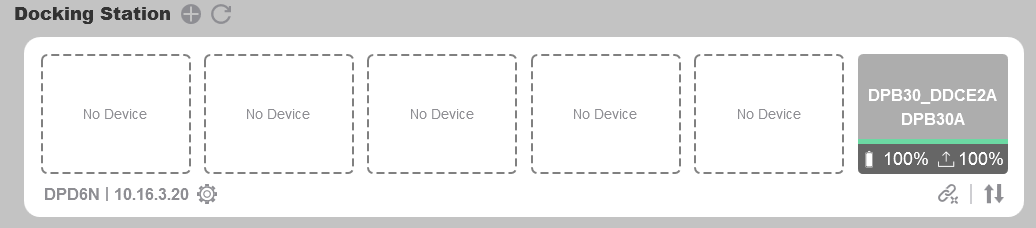

3-3. Disconnecting Docking Station and Updating Camera Firmware
-
Click
to disconnect the docking station. -
Click
to check the firmware version of all cameras connected to the docking station and update the firmware.

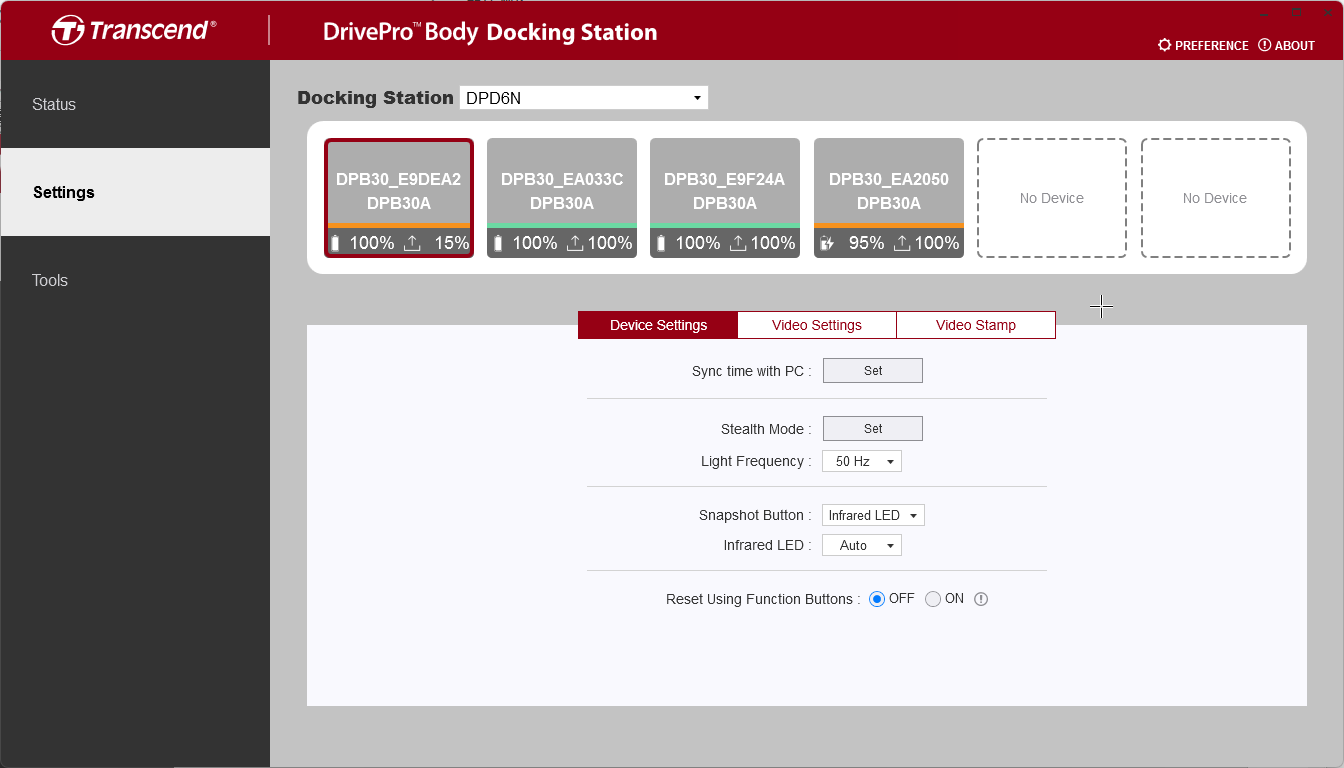

4. Settings
The Settings page allows you to adjust the device, video and video stamp settings for cameras connected to the docking station. Select the docking station, then choose the camera you want to configure.
Device Settings
| Function | Description / Options | |
|---|---|---|
| Sync time with PC | Click the “Set” button to sync the time of the device with the PC. | |
| Bluetooth | Turn Bluetooth on/off. | |
| OFF / ON | ||
| Device Alerts | Stealth Mode | Turn on/off Stealth mode. When the Stealth mode is on, the light indicators and buzzer are disabled. |
| ON / OFF | LED Indicator | Turn on/off LEDs when recording. |
| ON / OFF | Buzzer | Turn on/off Buzzer when recording. |
| ON / OFF | Vibrator | Turn on/off Vibrator when recording. |
| ON / OFF | ||
| Light Frequency | Select the appropriate frequency to avoid flashing A/C light. | |
| 50 Hz / 60 Hz | ||
| Snapshot Button |
Adjust the long-press snapshot button
 setting to enable the infrared LEDs or the audio
recording function.
|
|
| Infrared LED / Audio Recording | ||
| Infrared LED | Select to activate the Infrared LEDs manually or automatically. | |
| Manual / Auto (default) | ||
|
Reset Using Function Buttons |
When the power is on, press the power button
 and snapshot button simultaneously for 5+ seconds to format and
reset the device. After that, the camera will turn
off. (Default: OFF).
|
|
| Function | Description / Options | |
|---|---|---|
| Time Zone | Select your time zone. | |
| Sync time with PC | Click the “Set” button to sync the time of the device with the PC. | |
| GPS | Switch GPS on/off. | |
| OFF / ON | ||
| Bluetooth | Turn Bluetooth on/off. | |
| OFF / ON | ||
| Device Alerts | Stealth Mode | Turn on/off Stealth mode. When the Stealth mode is on, the light indicators and buzzer are disabled. |
| ON / OFF | LED Indicator | Turn on/off LEDs when recording. |
| ON / OFF | Buzzer | Turn on/off Buzzer when recording. |
| ON / OFF | Vibrator | Turn on/off Vibrator when recording. |
| ON / OFF | ||
| Light Frequency | Select the appropriate frequency to avoid flashing A/C light. | |
| 50 Hz / 60 Hz | ||
| Snapshot Button |
Set the long press of the
Snapshot button to either enable the infrared LEDs or activate the
audio recording function.
|
|
| Infrared LED / Audio Recording | ||
| Infrared LED | Select to activate the Infrared LEDs manually or automatically. | |
| Manual / Auto (default) | ||
| Reset Using Function Buttons | To format and reset the device, press and hold the Power and Snapshot buttons simultaneously for 5
seconds while the power is on. Afterward, the camera will turn off. (Default: OFF) |
|
| Function | Description / Options | |
|---|---|---|
| Time Zone | Select your time zone. | |
| Sync time with PC | Click the “Set” button to sync the time of the device with the PC. | |
| Device Alerts | Stealth Mode | Turn on/off Stealth mode. When the Stealth mode is on, the light indicators and buzzer are disabled. |
| ON / OFF | LED Indicator | Turn on/off LEDs when recording. |
| ON / OFF | Buzzer | Turn on/off Buzzer when recording. |
| ON / OFF | Vibrator | Turn on/off Vibrator when recording. |
| ON / OFF | ||
| Light Frequency | Select the appropriate frequency to avoid flashing A/C light. | |
| 50 Hz / 60 Hz | ||
| Audio Sample Rate | Set audio sample rate. The higher the frequency, the better the sound quality. |
|
| 48000 Hz / 44100 Hz / 32000 Hz / 24000 Hz / 22050 Hz | ||
| Reset Using Function Buttons | When the power is on, press the Power and Snapshot buttons simultaneously for 5
seconds to format and reset the device. After that, the camera will turn off. (Default: OFF) |
|
| Function | Description / Options | |
|---|---|---|
| Time Zone | Select your time zone. | |
| Sync time with PC | Click the “Set” button to sync the time of the device with the PC. | |
| GPS | Switch GPS on/off. | |
| OFF / ON | ||
| Bluetooth | Turn Bluetooth on/off. | |
| OFF / ON | ||
| Device Alerts | Stealth Mode | Turn on/off Stealth mode. When the Stealth mode is on, the light indicators and buzzer are disabled. |
| ON / OFF | LED Indicator | Turn on/off LEDs when recording. |
| ON / OFF | Buzzer | Turn on/off Buzzer when recording. |
| ON / OFF | Vibrator | Turn on/off Vibrator when recording. |
| ON / OFF | ||
| Light Frequency | Select the appropriate frequency to avoid flashing A/C light. | |
| 50 Hz / 60 Hz | ||
| Audio Sample Rate | Set the audio sampling frequency. The higher the frequency, the better the sound quality. |
|
| 48000 Hz / 44100 Hz / 32000 Hz / 24000 Hz / 22050 Hz | ||
|
Reset Using Function Buttons |
When the power is on, press the Power and Snapshot buttons simultaneously for 5 seconds to format and reset the device. After that, the camera will turn off. (Default: OFF). | |
Video Settings
| Function | Description / Options |
|---|---|
| Resolution | Set the quality for video recording. |
| 1440P/30FPS / 1080P/60FPS / 1080P/30FPS / 720P/30FPS / 480P/30FPS | |
| Video Format | Set the recording file format. |
| MOV / MP4 | |
| Loop Recording | Overwrite the old video files with new ones. |
| ON / OFF (default) | |
| Video Length | Set the recording length of each recorded video. |
| 3 mins / 5 mins / 10 mins | |
| Microphone | Turn on/off the microphone during video recording. |
| ON / OFF | |
| Default Recording Mode | Select the default recording mode. |
| Buffering mode / Recording mode | |
| Buffered Video Length |
Set the buffered video length to record footage that happens prior to activating the Recording
mode.
Note: The resolution settings determine the maximum length of videos recorded in
Buffering mode.
|
| 30 seconds / 60 seconds / 90 seconds / 120 seconds | |
| Buffering Recording Audio | Turn on/off the microphone in Buffering mode. |
| ON / OFF |
| Function | Description / Options |
|---|---|
| Resolution | Set the resolution/quality for video recording. |
| 1440P/60FPS / 1440P/30FPS / 1080P/30FPS / 720P/30FPS | |
| Image Stabilization |
Enable or disable image stabilization.
Note: When image stabilization is enabled, the available resolution options are
1440P/30FPS and 1080P/30FPS.
|
| OFF / ON | |
| Video Format | Set the recording file format. |
| MOV / MP4 | |
| Loop Recording | Overwrite the old video files with new ones. |
| OFF (default) / ON | |
| Video Length | Set the recording length of each recorded video. |
| 3 mins / 5 mins / 10 mins | |
| Microphone | Turn on/off the microphone during video recording. |
| OFF / ON | |
| Default Recording Mode | Select the default recording mode. |
| Buffering mode / Recording mode | |
| Buffered Video Length |
Set the buffered video length to record footage that happens prior to activating the Recording
mode.
Note:· The resolution settings determine the maximum length of videos recorded in Buffering mode. · When the resolution is set to 1440P/60FPS or 1440P/30FPS, the available options for Buffered Video Length are 30 seconds and 60 seconds. |
| 30 seconds / 60 seconds / 90 seconds / 120 seconds | |
| Buffering Recording Audio | Turn on/off the microphone in Buffering mode. |
| OFF / ON |
| Function | Description / Options |
|---|---|
| Resolution | Set the resolution/quality for video recording. |
| 1080P/30FPS / 720P/30FPS / 480P/30FPS | |
| Loop Recording | Overwrite the old video files with new ones. |
| OFF (default) / ON | |
| Video Length | Set the recording length of each recorded video. |
| 3 mins / 5 mins / 10 mins | |
| Microphone | Turn on/off the microphone during video recording. |
| OFF / ON | |
| Default Recording Mode | Select the default recording mode. |
| Buffering mode (default) / Recording mode | |
| Buffered Video Length |
Set the buffered video length to record footage that happens prior to activating the Recording mode.
Note: The resolution settings determine the maximum length of videos recorded in Buffering mode.
|
| 30 seconds / 60 seconds / 90 seconds / 120 seconds (default) | |
| Buffering Recording Audio | Turn on/off the microphone in Buffering mode. |
| OFF / ON |
| Function | Description / Options |
|---|---|
| Resolution | Set the quality for video recording. |
| 1440P/30FPS / 1080P/30FPS / 720P/30FPS / 480P/30FPS | |
| Video Format | Set the recording file format. |
| MOV / MP4 | |
| Loop Recording | Overwrite the old video files with new ones. |
| ON / OFF | |
| Video Length | Set the recording length of each recorded video. |
| 3 mins / 5 mins / 10 mins | |
| Light Frequency | Select the appropriate frequency to avoid flashing A/C light. |
| 50 Hz / 60 Hz | |
| Microphone | Turn on/off the microphone during video recording. |
| ON / OFF | |
| Default Recording Mode | Select the default recording mode. |
| Buffering mode / Recording mode | |
| Buffered Video Length | Set the buffered video length to record footage that happens prior to activating the Recording mode. |
| 30 seconds / 60 seconds / 90 seconds / 120 seconds | |
| Buffering Recording Audio | Turn on/off the microphone in Buffering mode. |
| ON / OFF |
Video Stamp
| Function | Description / Options |
|---|---|
| Video Stamp | Display the video recording time and the video label. |
| OFF / ON | Date Format | Set the date format. |
| Y/M/D / M/D/Y / D/M/Y | Time Format | Select the 24-hour clock or the 12-hour clock. |
| 24HR / AM/PM | Watermark | Display the Transcend logo watermark on photos or videos. |
| OFF / ON |

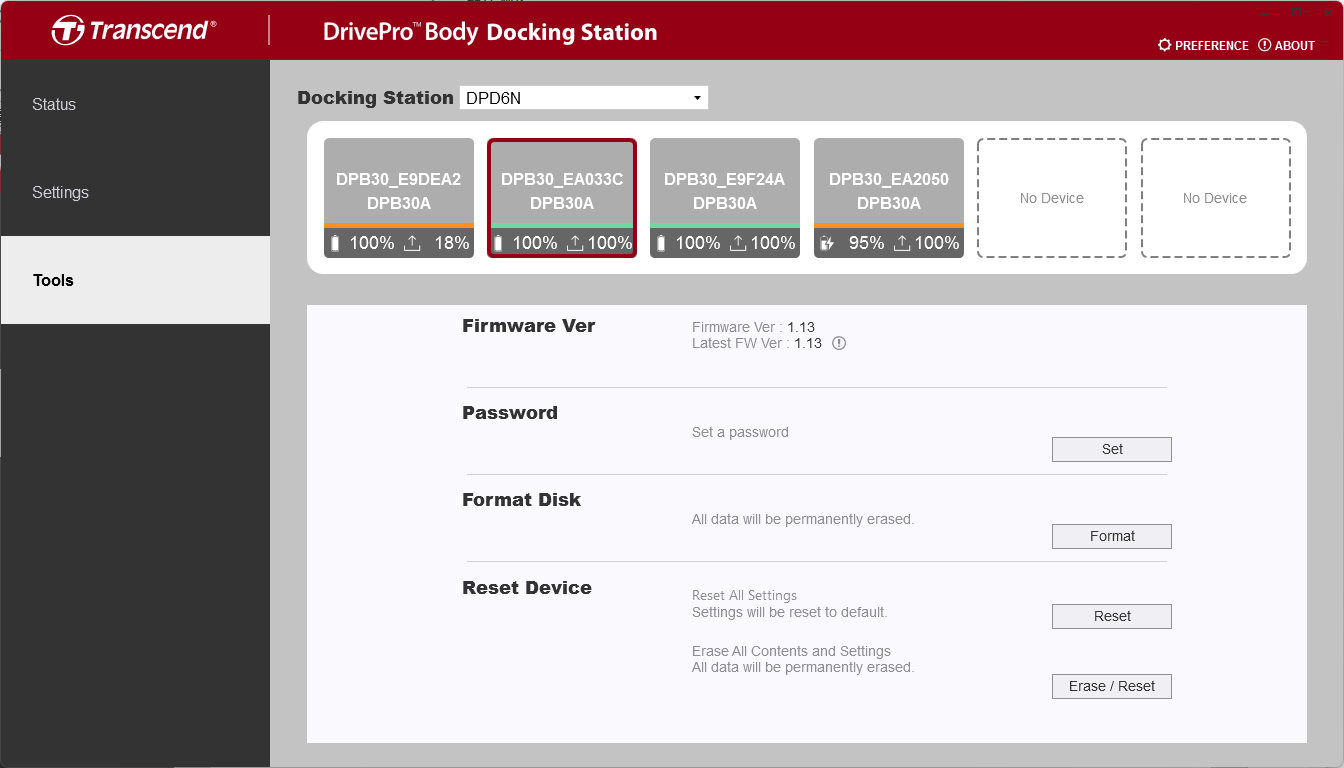

5. Tools
On the Tools page, you can update firmware, set/change/disable passwords, format the disk, or reset the DrivePro Body to its default settings.
Note
- Formatting the disk or resetting the device will permanently delete all data.
-
Firmware Ver: Update your firmware to the latest version.
-
Password: Set a password for the device. If a password is set, you must enter it to proceed with further operations.
-
Format Disk: Format the device's disk.
-
Reset Device: Reset to factory settings or erase all content and settings.
6. Support
If you cannot find the answer to your question in the user manual, we recommend visiting Transcend’s official website for technical support services: https://www.transcend-info.com/Support/contact_form
