M.2 SSDs

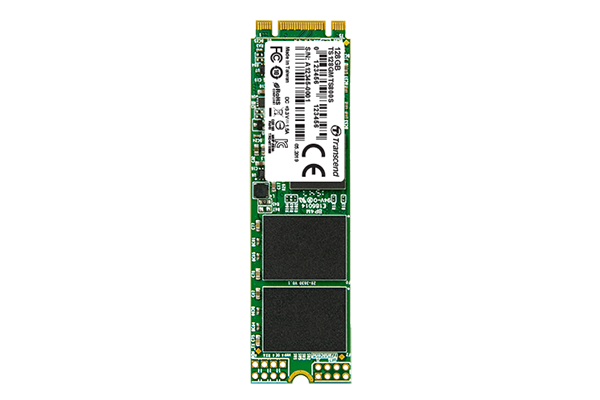

SATA III 6Gb/s MTS800 M.2 SSD

Transcend's MTS800 M.2 SSD's next generation SATA III 6Gb/s interface and ultra compact dimensions make it best suited to address the high performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today's modern Ultrabooks and thin and light notebooks. With the latest SATA III 6Gb/s specification, powerful controller, and exceptional transfer speeds of up to 560MB/s read and 460MB/s write*, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications.


Key Features

  • Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
  • Supports DevSleep mode, which allows devices to completely shut down the SATA interface and conserve battery life unlike existing partial/slumber states
  • DDR3 DRAM cache
  • Supports S.M.A.R.T., TRIM and NCQ command
  • RoHS compliant

Intel Smart Response Technology

Transcend's SATA III 6Gb/s MTS800 M.2 SSD supports Intel® Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for maximum storage capacity while delivering an SSD-like overall system performance experience.

ISRT works by monitoring which programs and files you access most frequently and stores them on the SSD. As a result, application launch speed and overall system responsiveness are significantly improved, while the large capacity of the hard drive is free to store all your other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.


There's more to it!

Click the SSD Comparison Chart below to find the SSD that suits you best.


SSD Comparison Chart

Specifications

Capacity 32GB, 64G, 128GB, 256GB, 512GB, 1TB

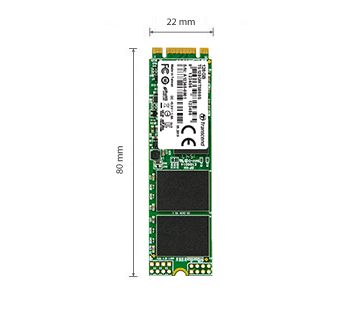

Dimensions (max.) 80.0mm × 22.0mm × 3.58mm (3.15" x 0.87" x 0.14")
Weight 9g (0.32 oz)
Storage Media MLC NAND Flash memory
Operating Voltage DC 3.3V±5%
Operating Temperature 0°C(32°F) to 70°C(158°F)
Certificates CE, FCC, BSMI
Warranty Three-year Limited Warranty (The 3 years warranty does not apply when SSD Scope's wear-out indicator shows 0% within 3 years.)

Please access here for more information about Transcend Warranty Policy.
*Note Speed may vary due to host hardware, software, usage and storage capacity.
System Requirements Desktop or notebook computer with a M.2 (MTS800) interface
(A SATA 6Gb/s port is needed for best performance)

Required OS:
  • Windows XP/Vista/7/8
  • Linux Kernel 2.6.31, or later

Awards

Recommended Product

Techporn
Philippines

Recommended Award

Proclockers
United States


Order Information

32GB
  • TS32GMTS800
64GB
  • TS64GMTS800
128GB
  • TS128GMTS800
256GB
  • TS256GMTS800
512GB
  • TS512GMTS800
1TB
  • TS1TMTS800
